H01

H01 is the latest version of High voltage battery storage system provided by DMEGC. The newly designed system provides easy connector to save valuable time for installers. The stacking system provides flexible configurations from 102.4V to 409.6V voltage and 5.12 kWh to 20.48kWh capacity.
Back to list > >

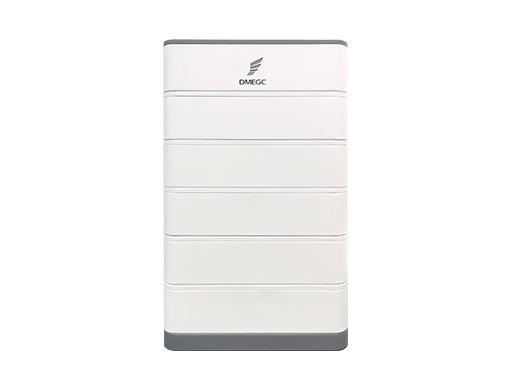

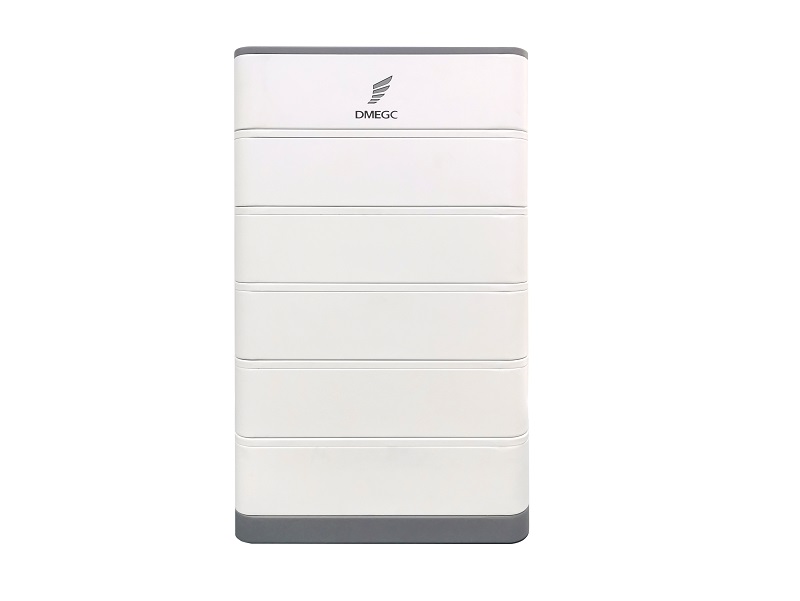

DMEGC H01
BESS solution


Smart module and cell balancing

Ultra-low power consumption

Easy installation

IP65 protection level

Smart battery cluster parallel



Total Energy: 5.12 ~ 20.48kWh
Nominal voltage: 102.4 409.6V
Nominal capacity: 50Ah
Communication Protocol: CAN
Protection Class: IP 65
Operating Temperature: charge: 0℃~55℃ / Discharge: -20℃~55℃
Cycle Life: ＞6000, 25℃
Authentication level：TUV/CE/IEC/UN38.3

Data Sheet of H01

Download

H01 Quick Installation Guide

Download
