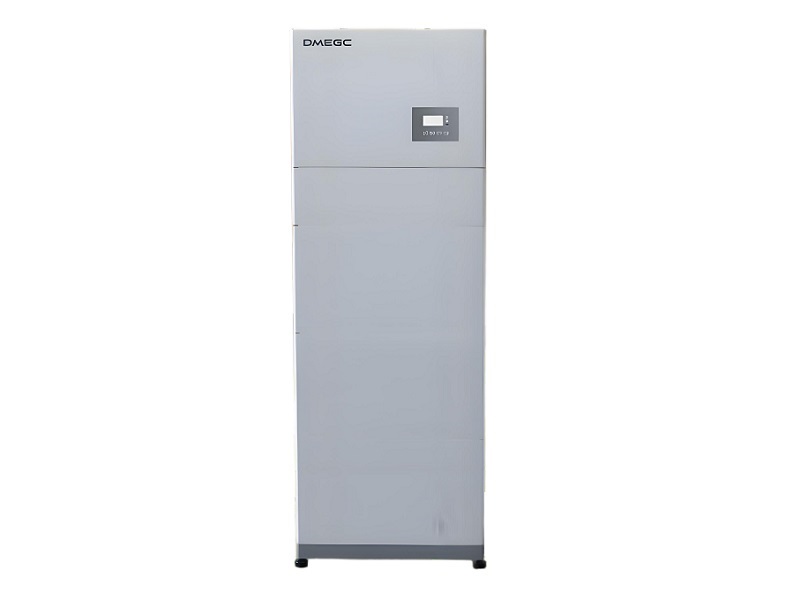

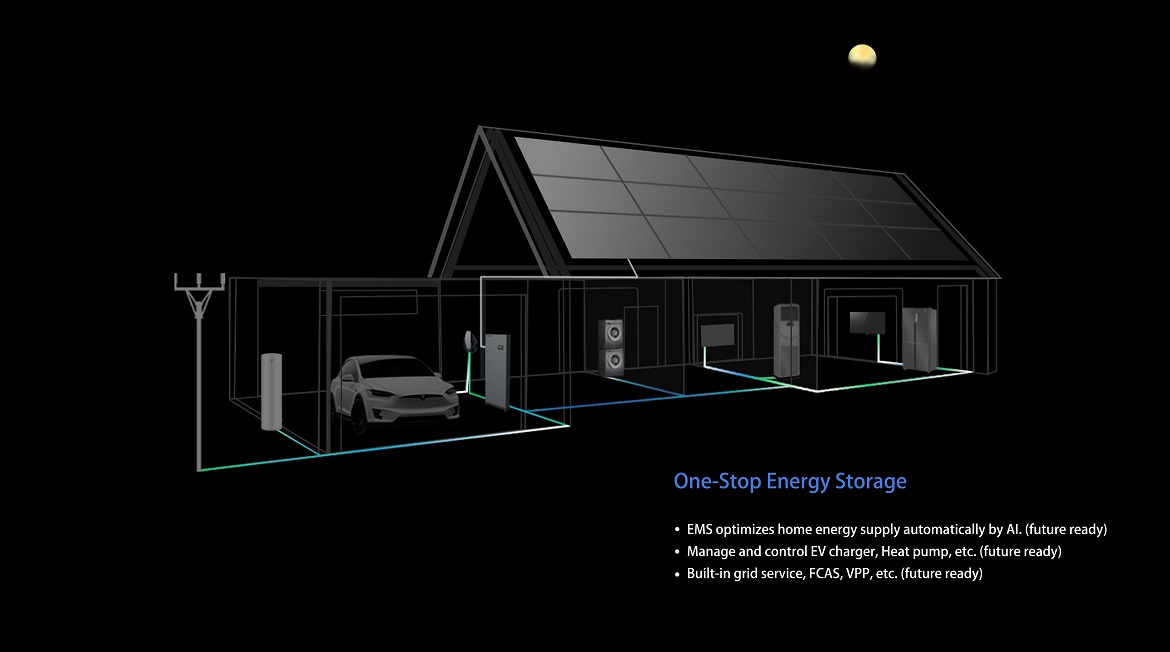

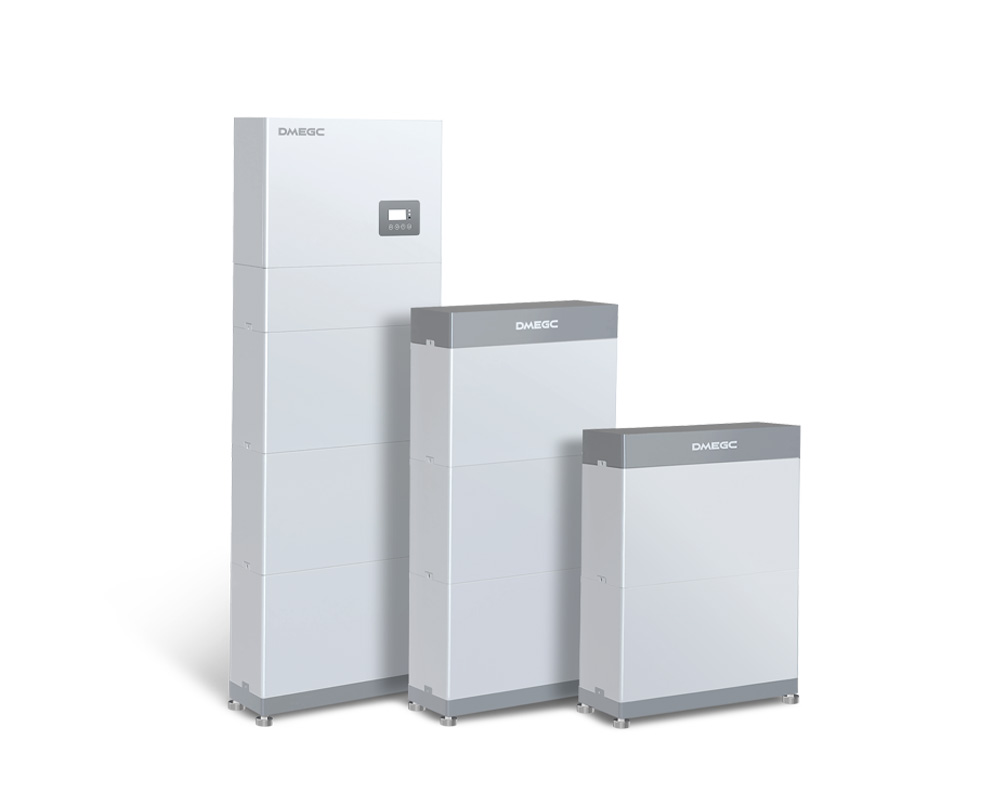

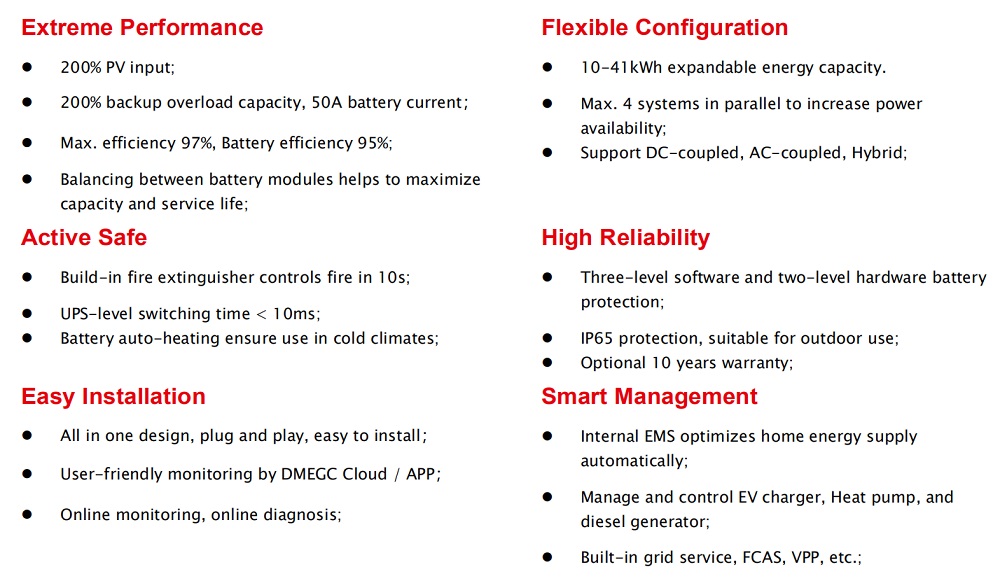

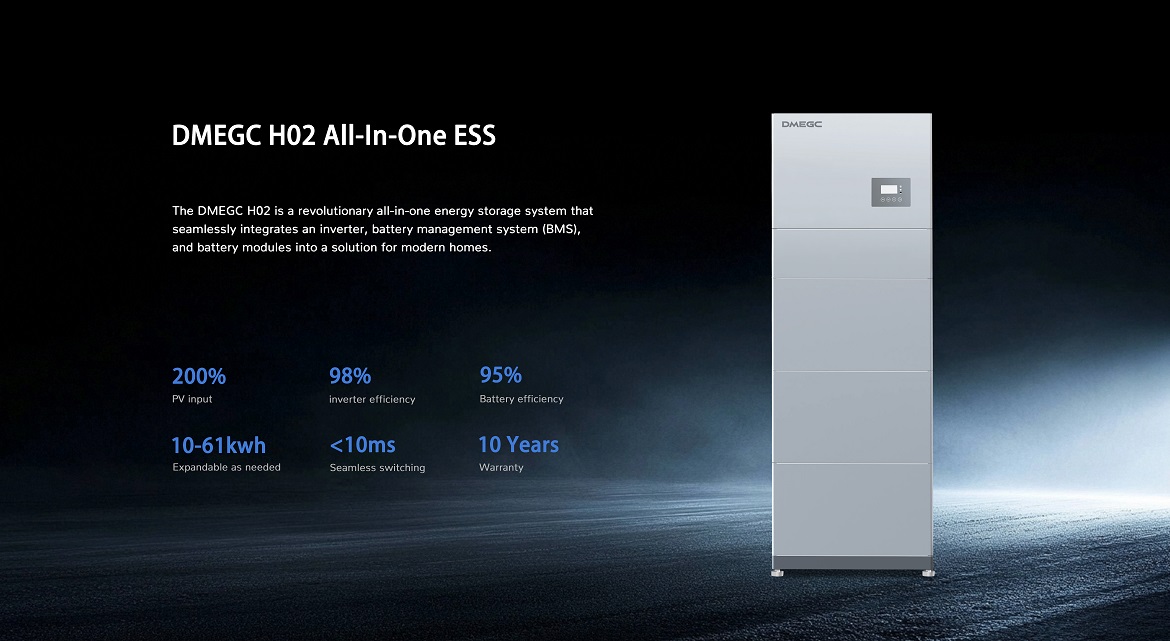

| SYSTEM SCHEMATIC |
|
|
|
|
|
| Rated output power [kW] | 3.6 / 5 / 6 / 8 | ||||

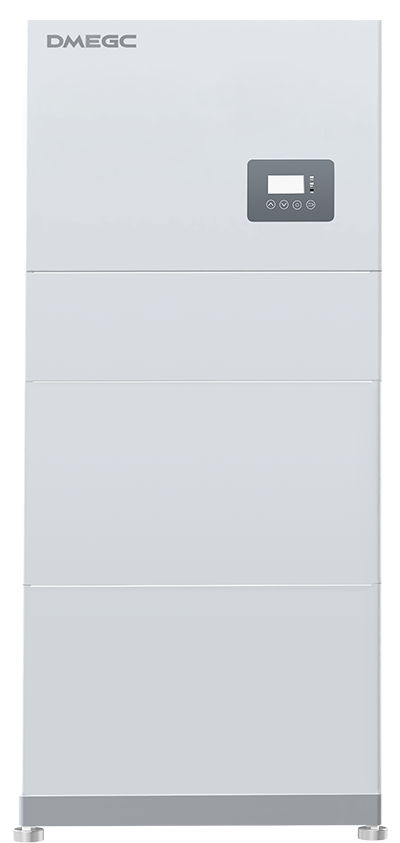

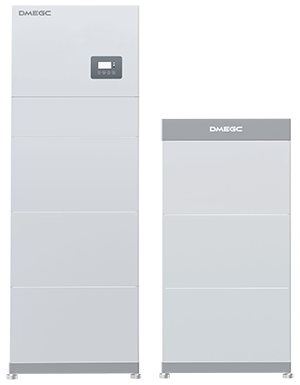

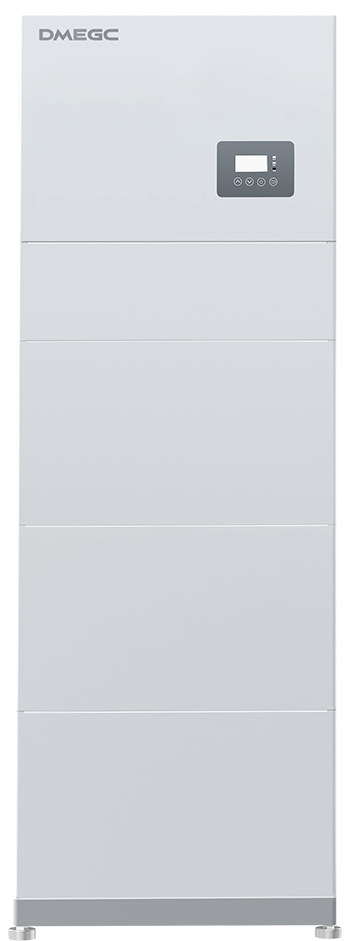

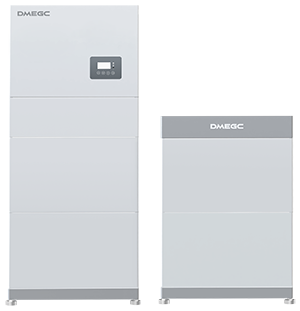

| Number of batteries | 2 | 3 | 4 | 5 | 6 |
| Nominal capacity [kWh]① | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |
| Usable energy [kWh]② | 9.72 | 14.59 | 19.46 | 24.32 | 29.18 |
| Max. charge / discharge power [kW]③ | 5.12 | 7.68 | 8 | 8 | 8 |
| Battery voltage range [V] | 91-115 | 137-173 | 182-230 | 228-288 | 274-346 |
| Degree of protection | IP65 | ||||
| Operating temperature range [°C] | -20 to 57 | ||||
| Allowable relative humidity range [%] | 5-95 (No condensation) | ||||
| Max. operating altitude [m] | 3000 | ||||
| Net weight [kg]④ | 139 | 191 | 139 / 166 | 191 / 166 | 139 / 114 |

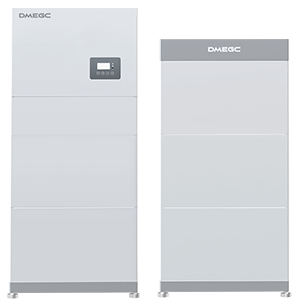

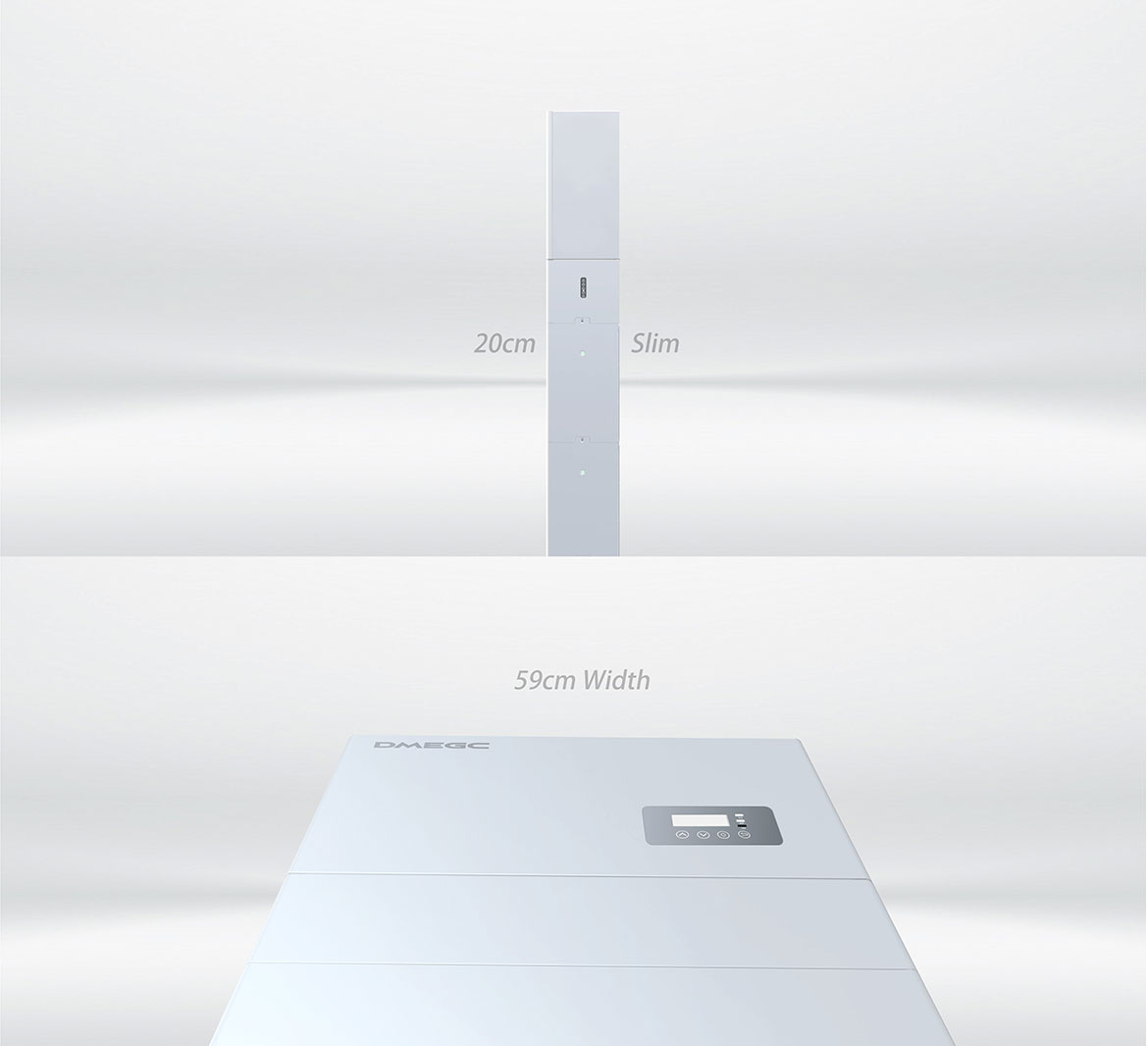

| Dimension (W x H x D) [mm] | 590 × 1330× 204 | 590 x 1663 x 204 |
590× 1330 × 204/ 590 × 845 × 204 |
590 × 1330 × 204/ 590 × 1179 × 204 |
590 × 1663 × 204/ 590 × 1179 × 204 |

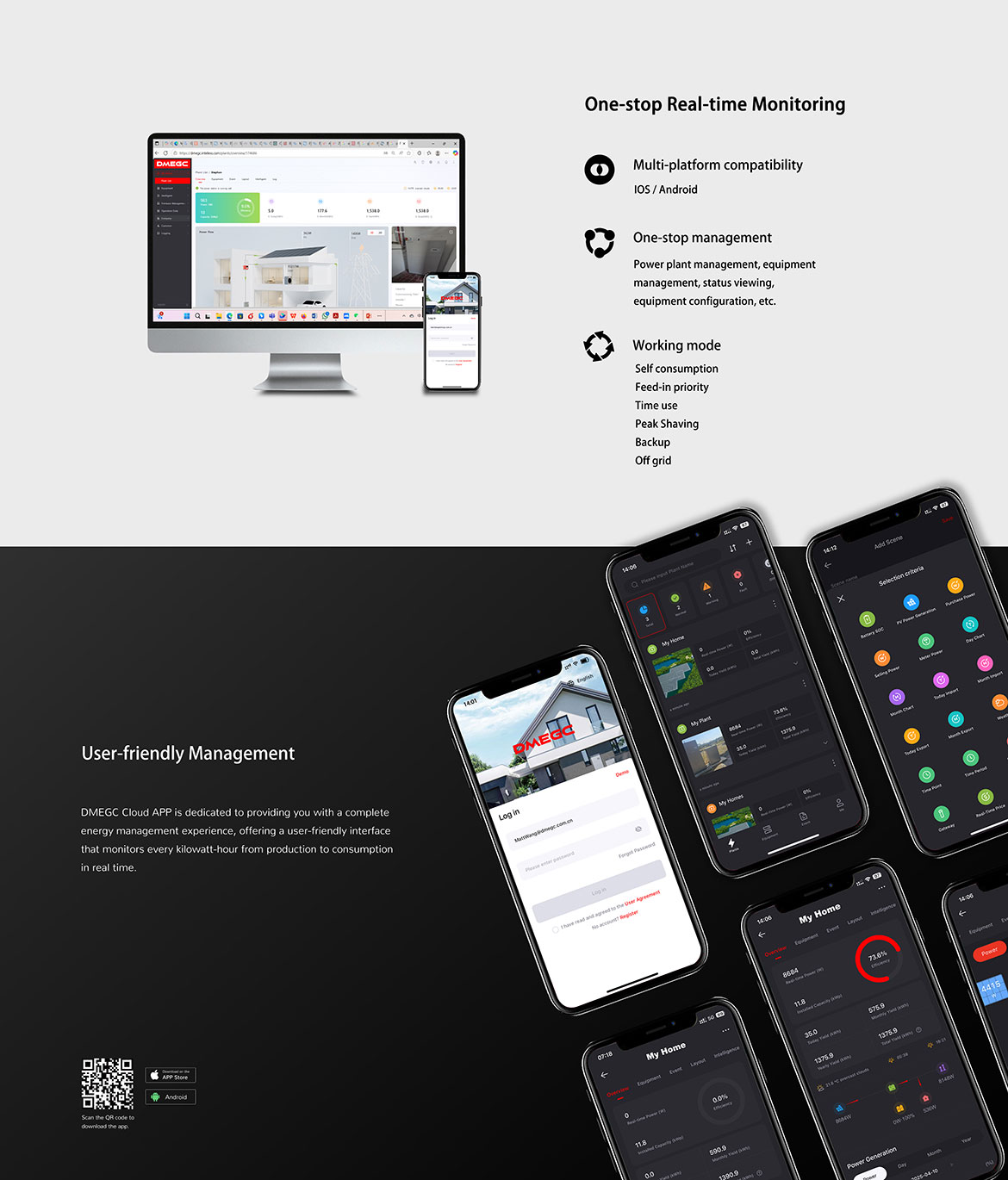

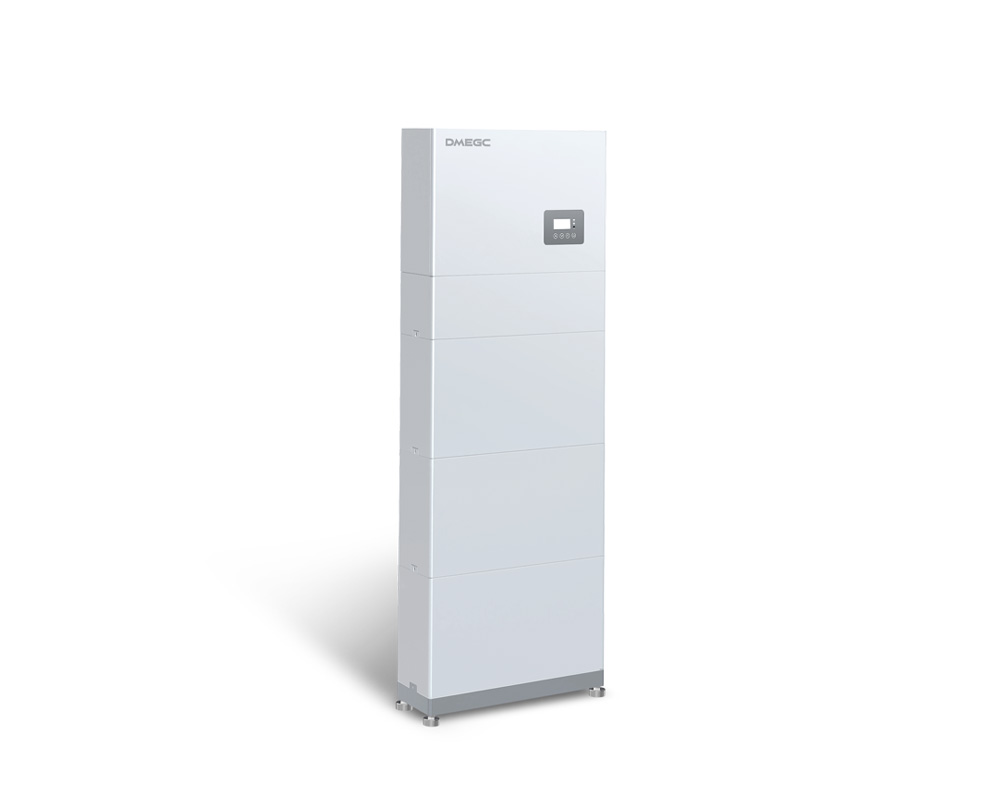

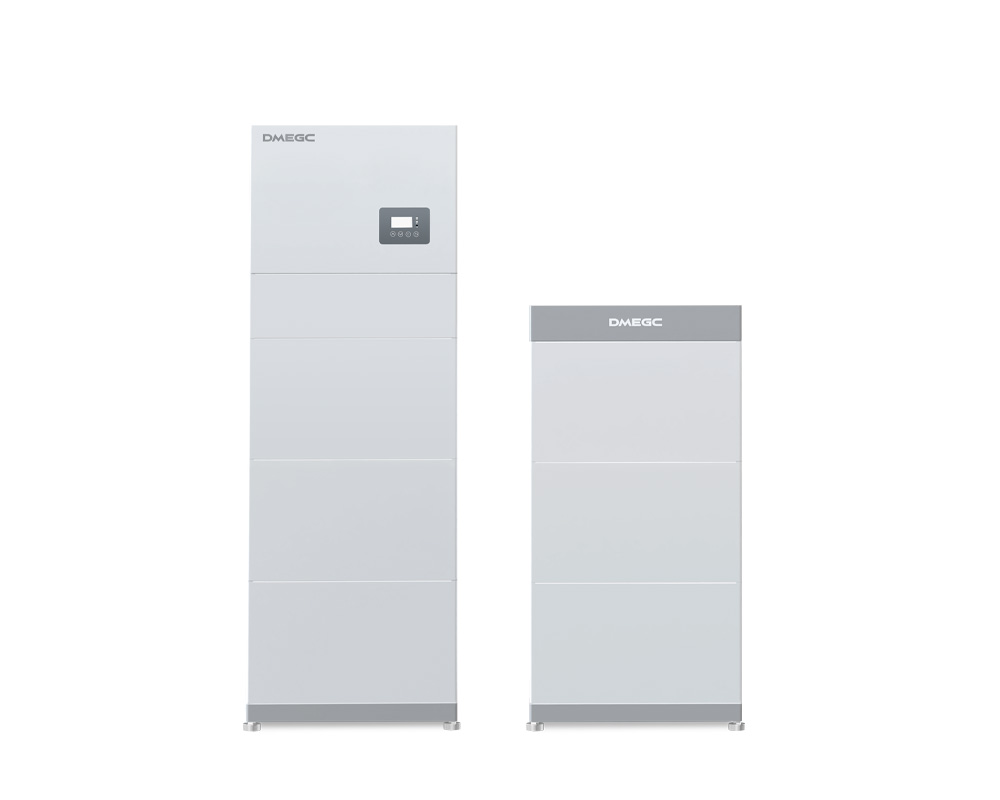

| Display | LCD | ||||
| Cooling concept | Natural cooling | ||||
| Topology | Transformerless | ||||
| Communication | RS485, CAN, LAN, Wi-Fi | ||||
| SYSTEM SCHEMATIC |
|
|
| Rated output power [kW] | 3.6 / 5 / 6 / 8 | |

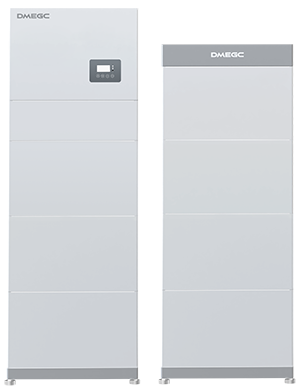

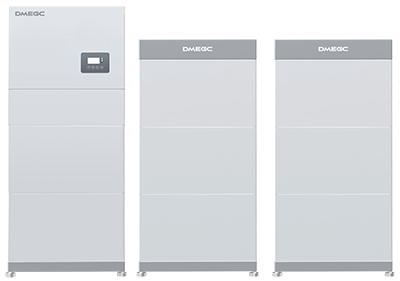

| Number of batteries | 7 | 8 |
| Nominal capacity [kWh]① | 35.84 | 40.96 |
| Usable energy [kWh]② | 34.05 | 38.91 |
| Max. charge / discharge power [kW]③ | 8 | 8 |
| Battery voltage range [V] | 319-403 | 365-461 |
| Degree of protection | IP65 | |
| Operating temperature range [°C] | -20 to 57 | |
| Allowable relative humidity range [%] | 5-95 (No condensation) | |
| Max. operating altitude [m] | 3000 | |
| Net weight [kg]④ | 191 / 218 | 139 / 166 / 166 |
| Dimension (W x H x D) [mm] |
590× 1663 × 204/ 590 × 1513 × 204/ |
590× 1330 × 204/ 590 × 1179 × 204/ 590 × 1179 × 204 |
| Display | LCD | |
| Cooling concept | Natural cooling | |
| Topology | Transformerless | |
| Communication | RS485, CAN, LAN, Wi-Fi | |
① Test conditions: 25°C, 100% depth of discharge (DoD), 0.2C charge & discharge.
② System usable energy may vary with inverter different setting.
③ The max. charge/discharge power must not exceed the rated output power (the table takes the maximum power inverter as an example).
④ Different inverter models have different weights. The heaviest one is taken as an example.
| INVERTER MODEL | DM-INV-SPH3.6K | DM-INV-SPH5K | DM-INV-SPB5K | DM-INV-SPH6K | DM-INV-SPH8K |
|---|---|---|---|---|---|
| PV INPUT |
|

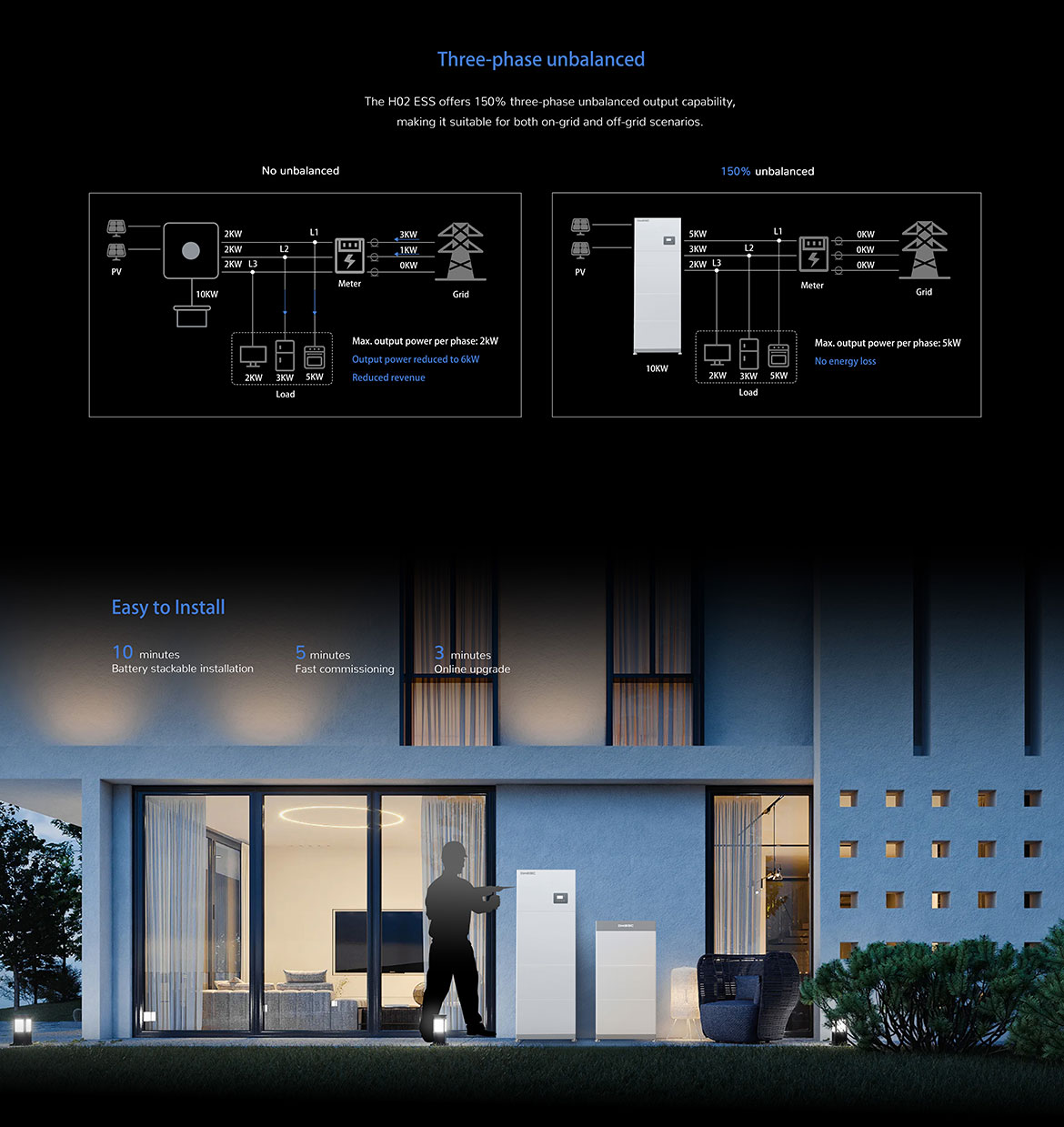

||||
| Max. recommended PV power [Wp] | 7360 | 10000 | N/A | 10000 | 10000 |
| Max. PV Input voltage [V] | 580 | N/A | 580 | ||
| Nominal operating voltage [V] | 360 | N/A | 360 | ||
| Max. input current per MPPT [A] | 15 / 15 | N/A | 15 / 15 | ||
| Max. short circuit current per MPPT [A] | 18.75 / 18.75 | N/A | 22.5 / 22.5 | ||
| MPPT voltage range① [V] | 100 ~ 550 | N/A | 100 ~ 550 | ||
| Start-up voltage [V] | 90 | N/A | 90 | ||
| MPPT number | 2 | N/A | 2 | ||
| Max. input strings per MPPT | 1 | N/A | 1 | ||
| INPUT AC |
|
|
|
|
|
| Nominal AC power [VA] | 7360 | 10000 | 10000 | 11500 | 11500 |
| Max. AC current [A] | 32.0 | 43.5 | 43.5 | 50.0 | 50.0 |
| Rated grid Frequency [Hz] | 50 / 60 | ||||
| Power factor | 0.8 leading to 0.8 lagging | ||||
| OUTPUT AC(ON-GRID) |
|
||||
| Nominal AC power [VA] | 3600 | 5000 (4600 VDE4105, 4999 AS4777) | 6000 | 8000 | |
| Max. apparent AC power [VA] | 3600 | 5000 (4600 VDE4105, 4999 AS4777) | 6000 | 8000 | |
| Rated grid voltage (AC voltage range) [V] | L/N/PE, 230 | ||||
| Rated grid Frequency [Hz] | 50 / 60 | ||||
| Grid voltage range [V] | 170~270 | ||||
| Rated AC Output Current [A] | 15.7 | 21.7 | 21.7 | 26 | 34.7 |
| Displacement power factor | 0.8 leading to 0.8 lagging | ||||
| Total harmonic distortion (THDi, rated power) [%] | < 3 | ||||
| OUTPUT AC(BACK-UP) |
|

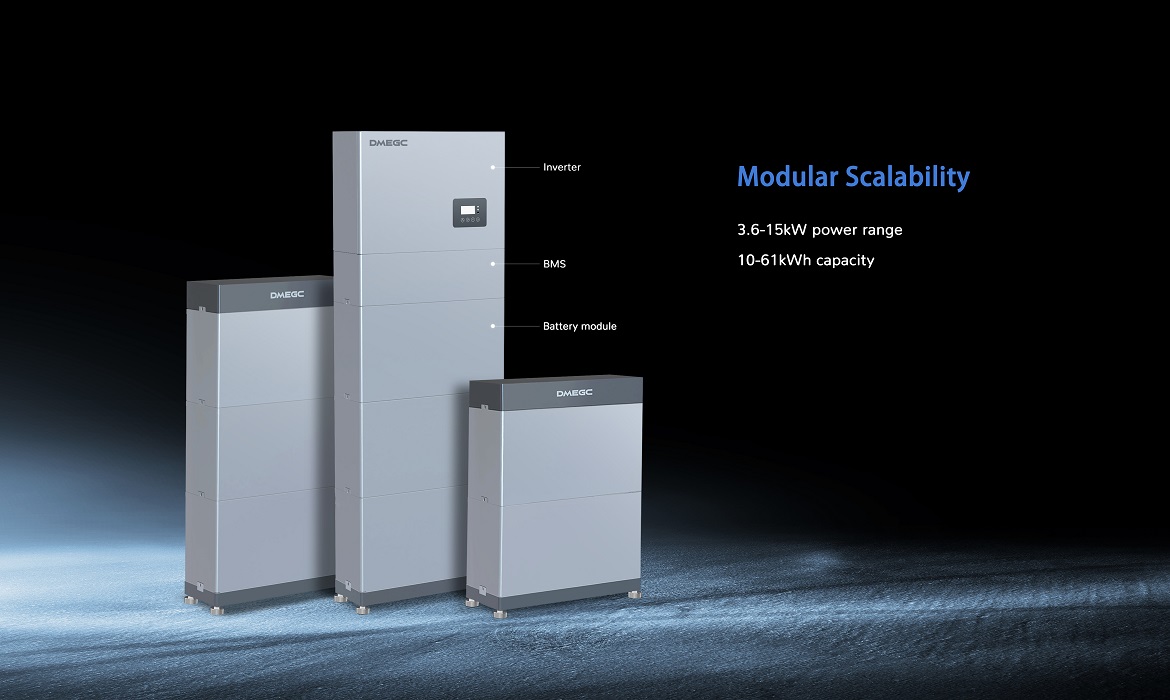

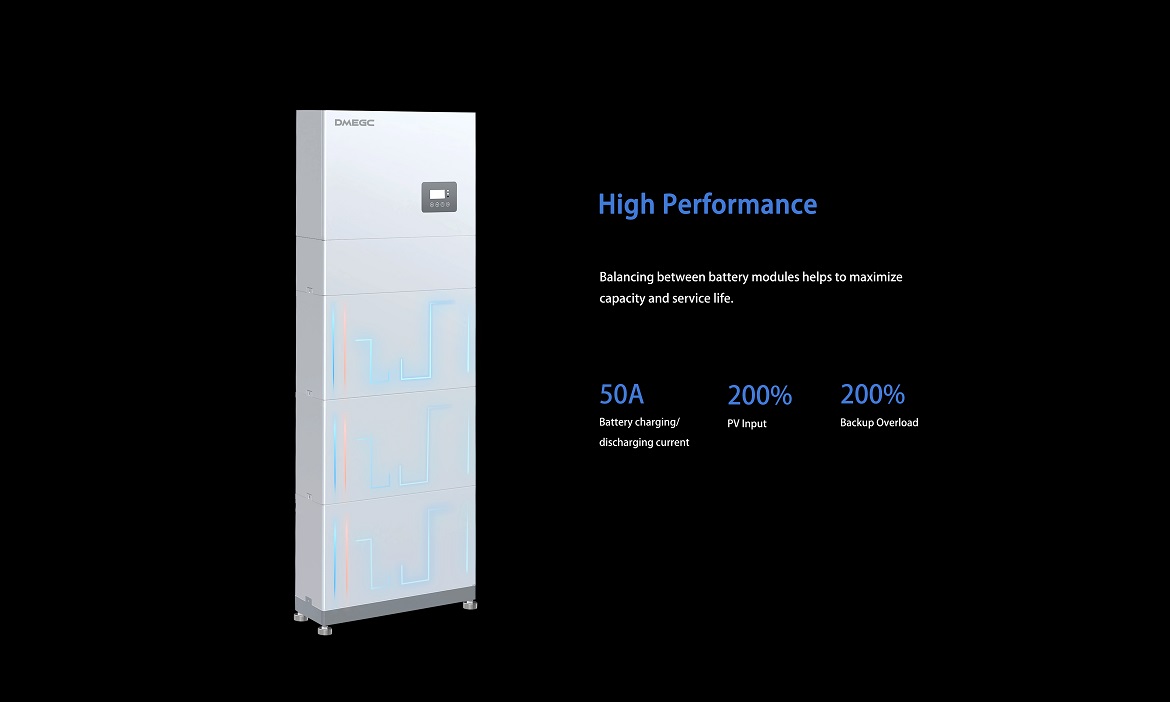

||||
| Rated output power [VA] | 3600 | 5000 | 5000 | 6000 | 8000 |
| Max. Apparent Output Power[VA] | 7360 | 10000 | 10000 | 11500 | 11500 |
| Rated output voltage [V], Frequency [Hz] | L/N/PE, 230, 50/60 | ||||
| Rated output current [A] | 15.7 | 21.7 | 21.7 | 26 | 34.7 |
| Switchover time [ms] | <10 | ||||
| Total harmonic distortion (THDv, linear Load) [%]/td> | < 3 | ||||
| BATTERY |
|

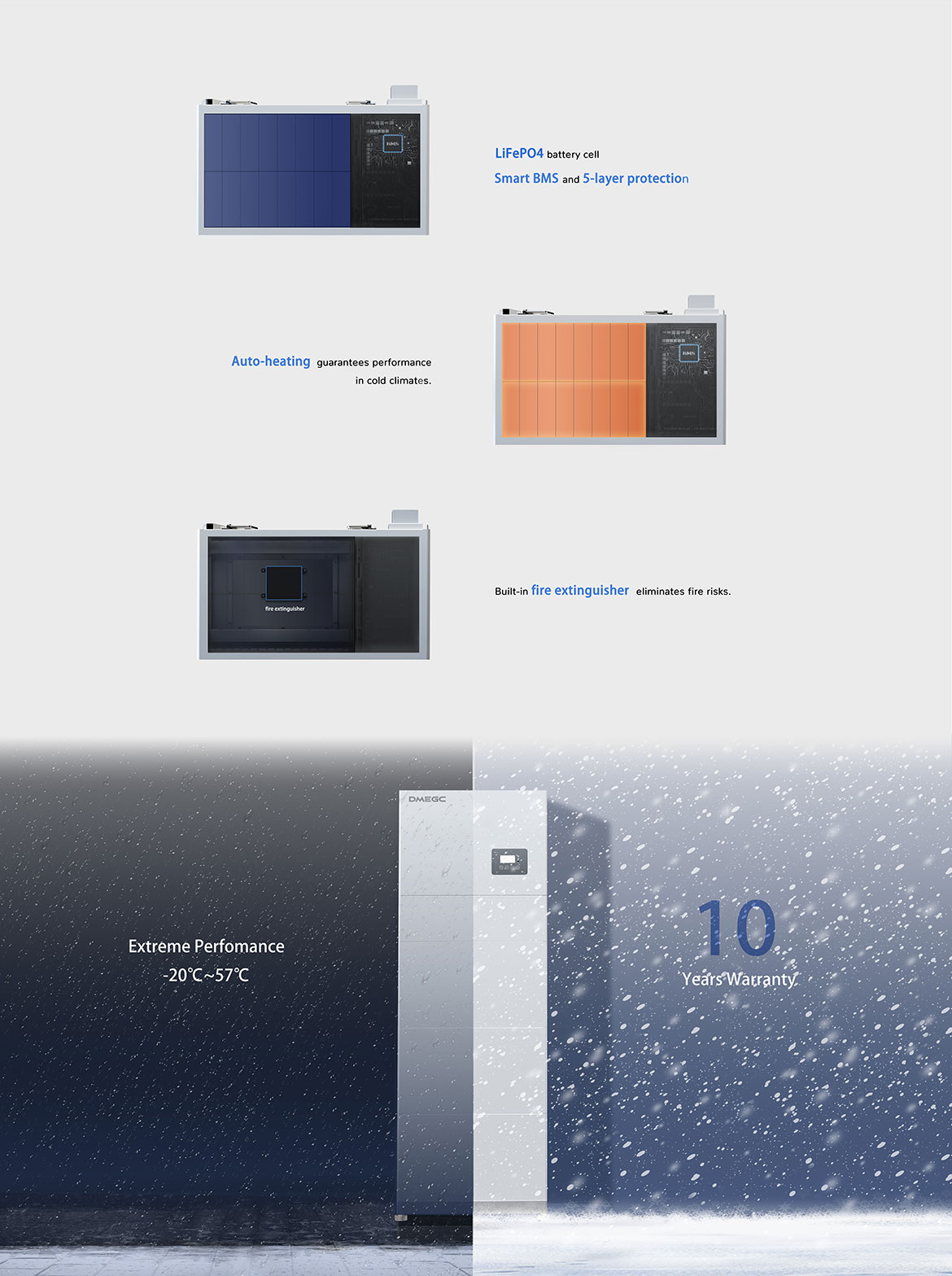

||||
| Battery voltage range [V] | 91.2 ~ 460.8 | ||||
| Communication interfaces | CAN / RS485 | ||||
| BMS module | H02-MASTER | ||||
| Battery module | H02-SLAVE | ||||
| Composition | H02-MASTER + H02-SLAVE * n + Bases + Series Box（Required for ≥2 towers） | ||||
| Battery type | Li-ion (LFP) | ||||
| Nominal capacity [kWh] / Nominal capacity [Ah]② | 5.12 / 100 | ||||
| Usable energy [kWh]③ | 4.86 | ||||
| Standard power [kW] | 2.56 | ||||
| Max power [kW] | 2.56 | ||||
| Recommend charge/discharge current [A] | 50 / 50 | ||||
| Max. charge / discharge current [A]④ | 50 / 50 | ||||
| Cycle life [Cycles] | 6000 | ||||
| Warranty [Years] | 10 | ||||
| Safety | IEC62619/IEC63056/IEC62477-1/62040-1/IEC60730 | ||||
| Transportation | UN38.3 | ||||
| H02-MASTER dimensions(W x H x D) [mm] / Weight [kg] | 590 × 181 × 204 / 9.3 | ||||
| H02-SLAVE dimensions(W x H x D) [mm] / Weight [kg] | 590 × 333 × 204 / 52 | ||||
| Base dimensions(W x H x D) [mm] / Weight [kg] | 590 × 78 × 204 / 5 | ||||
| Series box dimensions(W x H x D) [mm] / Weight [kg] | 590 × 100 × 204 / 5 | ||||
| EFFICIENCY |
|
||||
| Max. efficiency [%] / Euro-efficiency [%] | 97 / 96.2 | ||||
| Rated battery charge [%] / Discharge efficiency [%] | 98.5 / 97 | ||||
| GENERAL DATA (INVERTER) |
|
||||
| Dimensions (W x H x D) [mm] | 590 × 405 × 205 | ||||
| Weight [kg] | 19.5 | 19.5 | 17.5 | 20.5 | 21 |
| Operating temperature range [°C] | -25 ~ +60 (derating above 45°C) | ||||
| Ingress protection | IP65 | ||||
| Relative humidity [%] | 5 to 95 (No condensation) | ||||
| GENERAL DATA (INVERTER) |
|
||||
| Storage temperature [°C] | -40 ~ +65 | ||||
| Noise emission (typical) [dB(A)] | < 30 | < 45 | |||
| PROTECTION |
|
||||
| Anti-Islanding Protection | Integrated | ||||
| Insulation Resistor Detection | Integrated | ||||
| Residual Current Monitoring Unit | Integrated | ||||
| Output Over Current Protection | Integrated | ||||
| Output Short Protection | Integrated | ||||
| Output Overvoltage Protection | Integrated | ||||
| DC Reverse Polarity Protection | Integrated | ||||
| PV Overvoltage Protection | Integrated | ||||
| PV Switch | Integrated | ||||
| Battery Breaker | Integrated | ||||
| STANDARD |
|
||||
| Safety | IEC62109-1 / IEC62109-2 | ||||
| EMC | EN 61000-6-1 / EN 61000-6-2 / EN 61000-6-3 | ||||
| Grid Regulation | VDE-AR-N 4105, G98/G99, C10/11, NTS 631, RD1699, CEI 0-21, VDE 0126, NRS 097-2-1, MEA, PEA, AS/NZS 4777.2, EN 50549-1 | ||||
| FEATURES |
|
||||
| PV Connection | Vaconn D4 connectors | ||||
| Grid Connection | Plug in connector | ||||
| Back-up Connection | Plug in connector | ||||
| BAT Connection | Screw terminal | ||||
| Warranty[Years] | 10 | ||||
① Any DC input voltage beyond the MPPT voltage range may result in inverter improper operating.
② Test conditions: 25°C, 100% depth of discharge (DoD), 0.2C charge & discharge.
③ System usable energy may vary with inverter different setting.
④ Discharge: In case of battery cell's temperature range of -20°C~10°C and 45°C~53 °C, the discharge current will be reduced; Charge: In case of battery cell's temperature
range of 0°C~25°C and 45°C~53°C, the charge current will be reduced. Product charge or discharge power depends on the actual temperature of battery pack.
