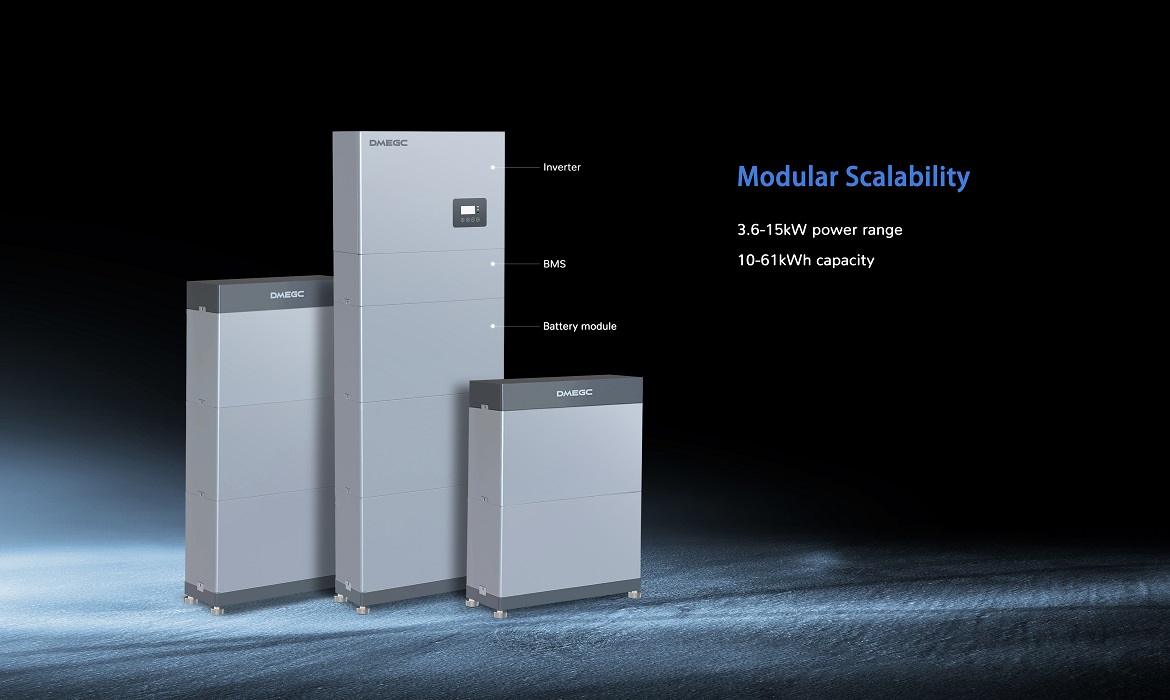

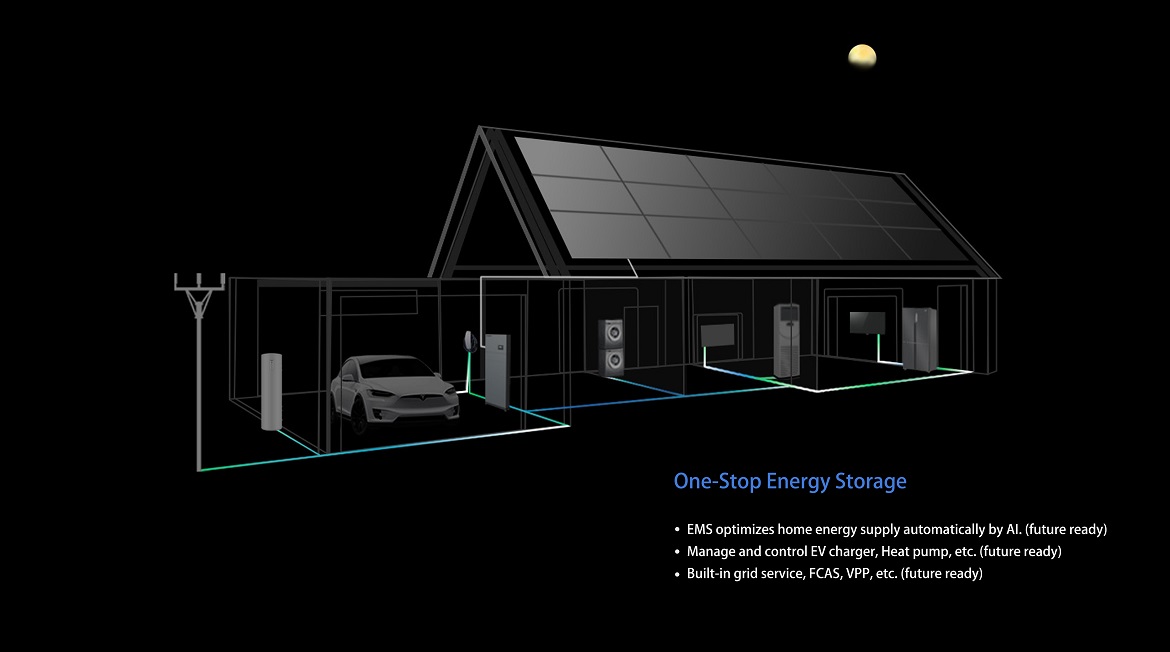

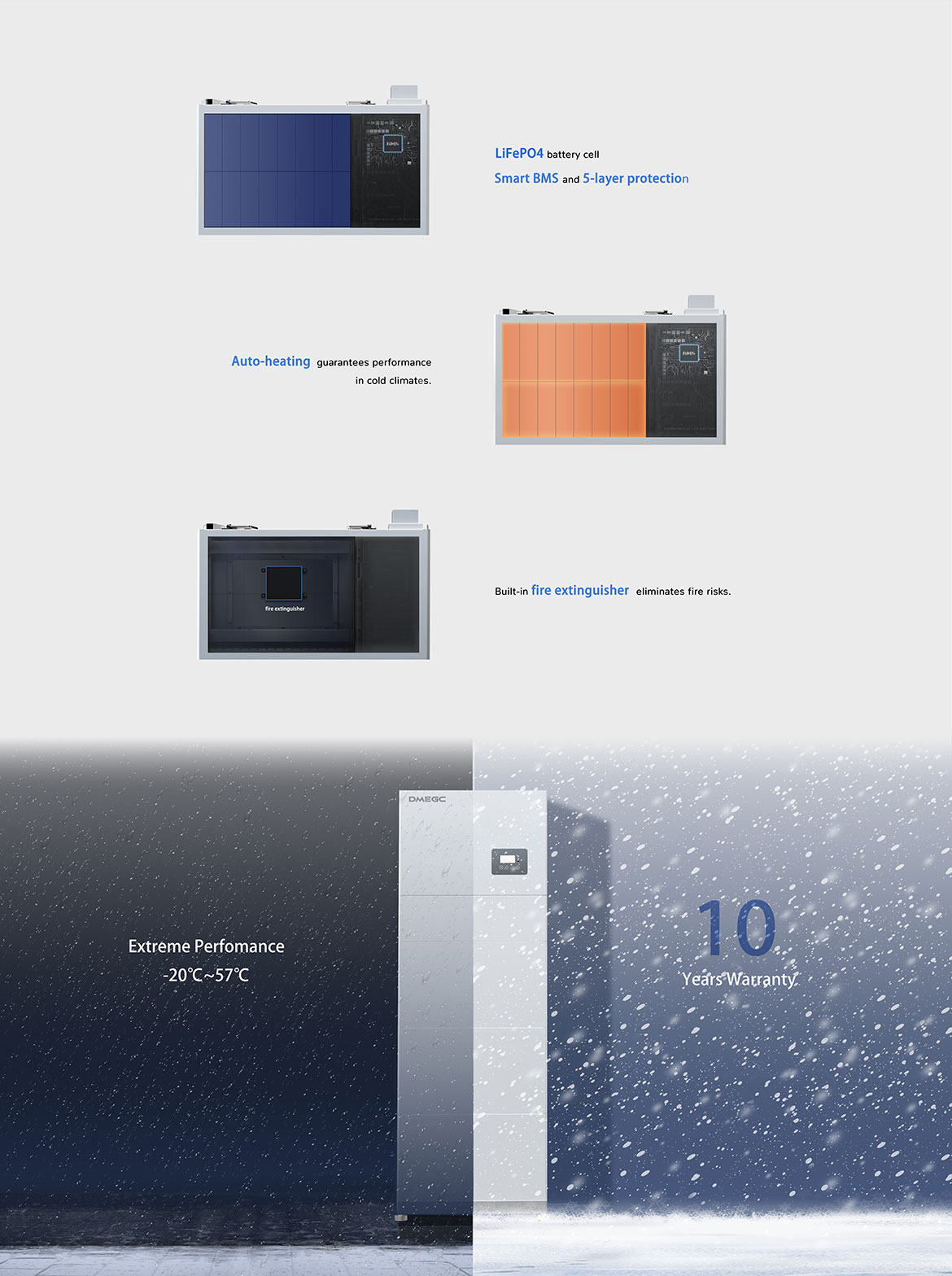

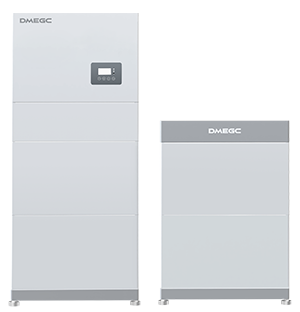

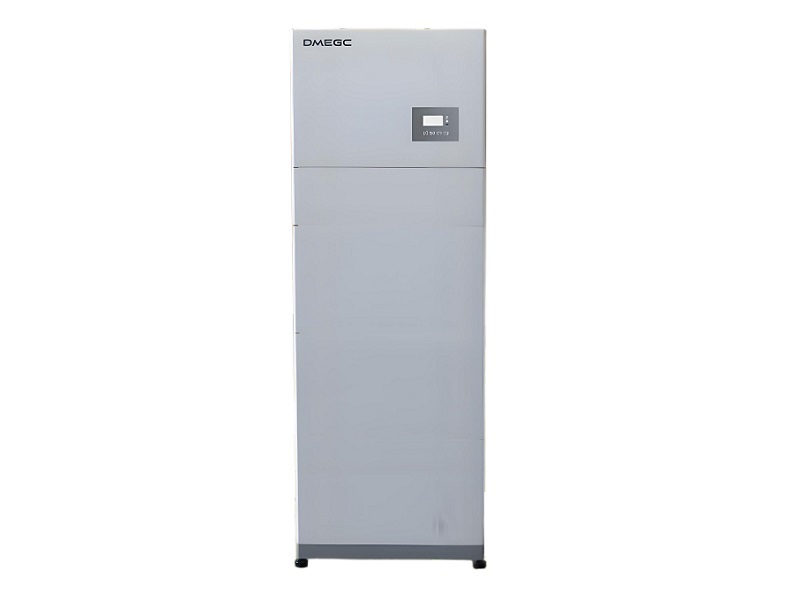

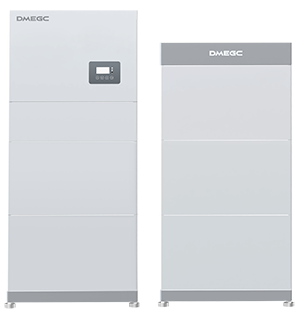

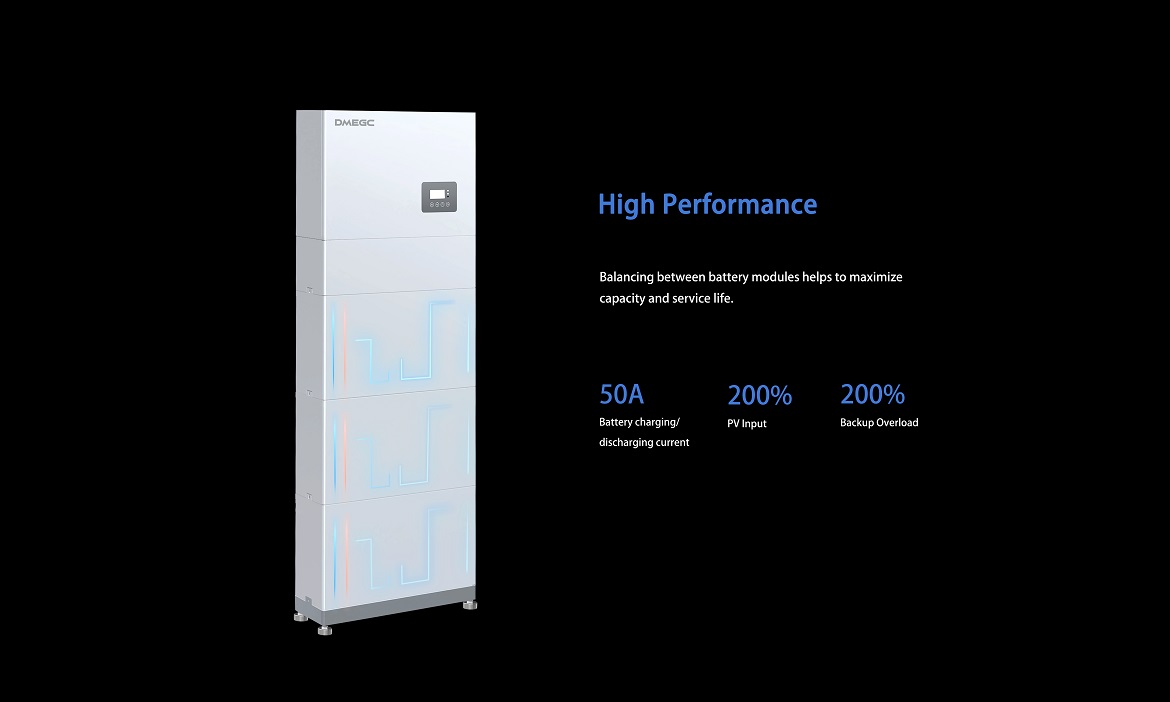

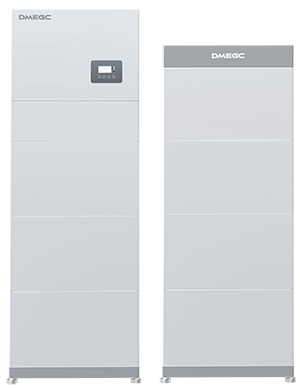

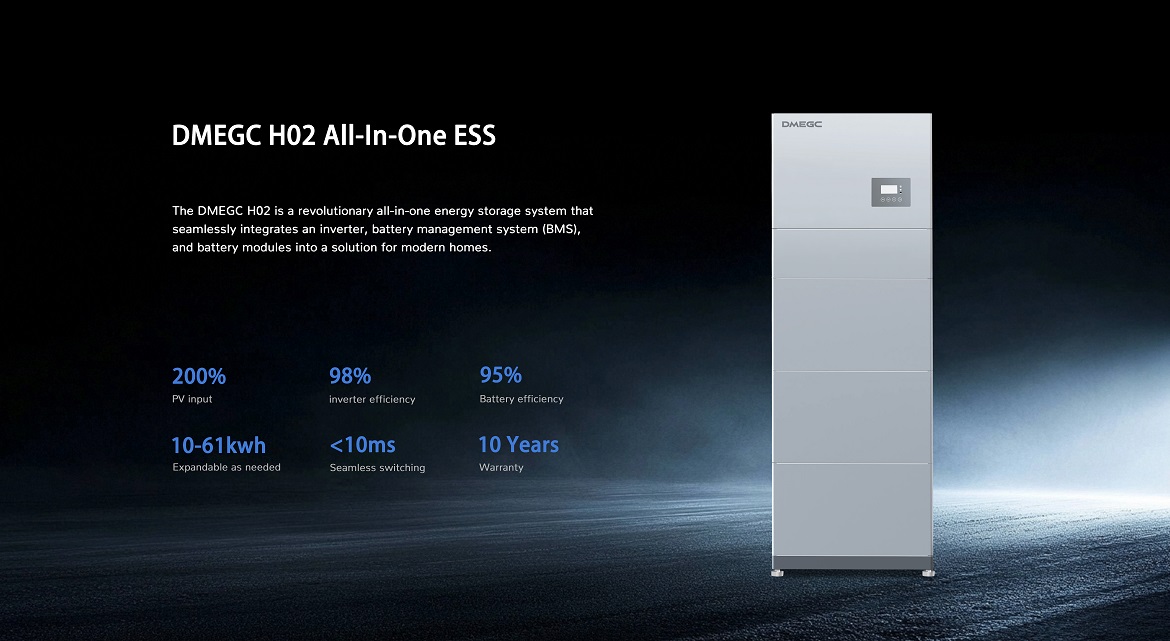

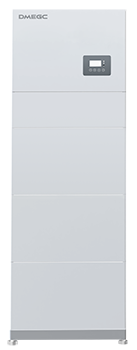

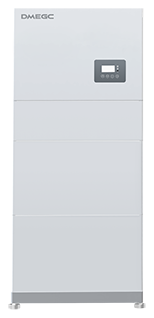

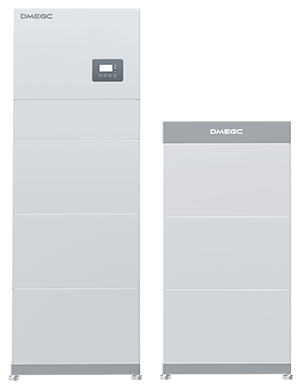

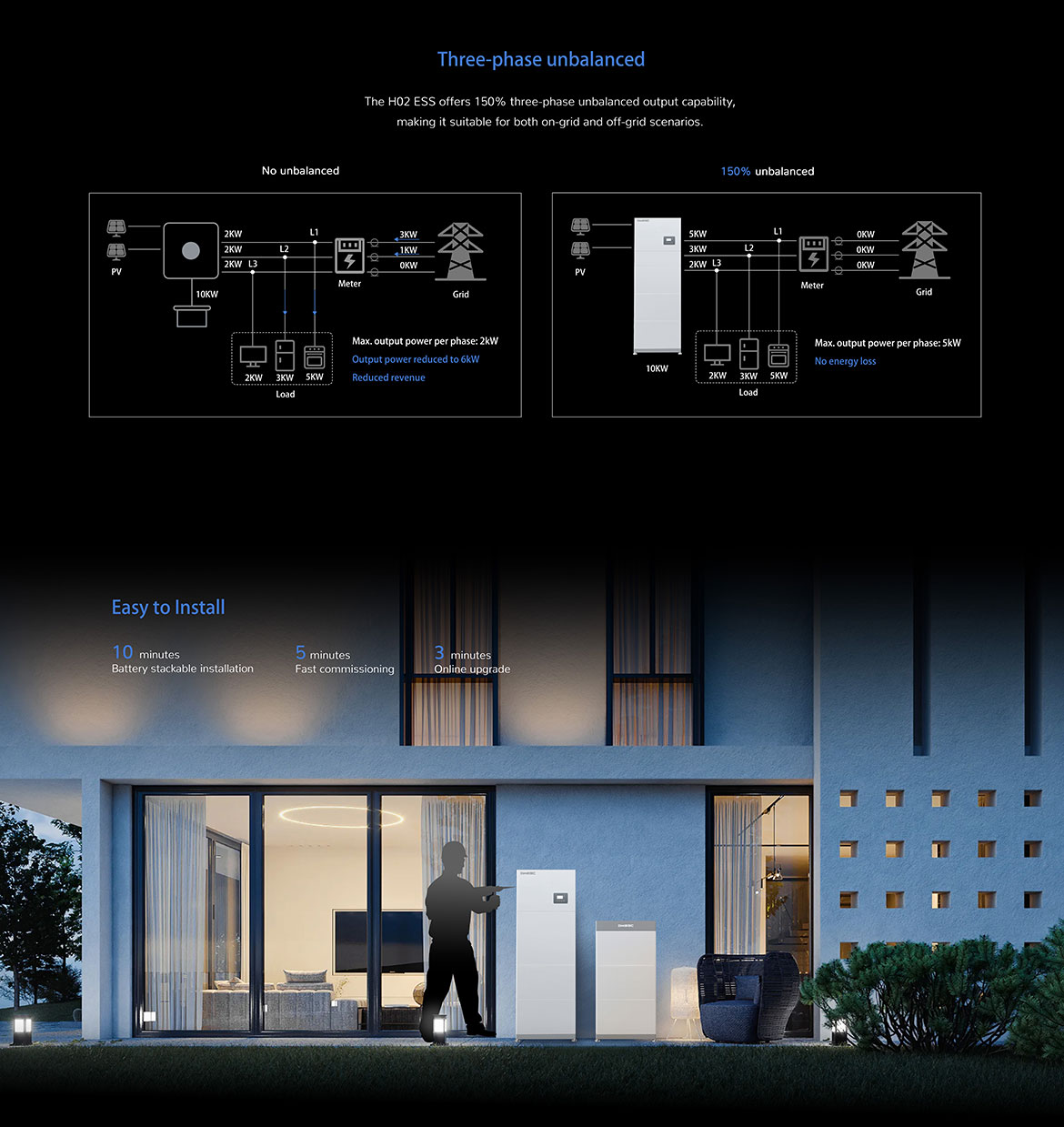

| SYSTEM SCHEMATIC |
|
|
|
|
|
| Rated output power [kW] | 4 / 5 / 6 / 8 / 10 / 12 / 15 | ||||
| Number of batteries | 2 | 3 | 4 | 5 | 6 |
| Nominal capacity [kWh]① | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |
| Usable energy [kWh]② | 9.72 | 14.59 | 19.46 | 24.32 | 29.18 |
| Max. charge / discharge power [kW]③ | 5.12 | 7.68 | 10.24 | 12.8 | 15 |
| Battery voltage range [V] | 91-115 | 137-173 | 182-230 | 228-288 | 274-346 |
| Degree of protection | IP65 | ||||
| Operating temperature range [°C] | -20 to 57 | ||||
| Allowable relative humidity range [%] | 5-95 (No condensation) | ||||
| Max. operating altitude [m] | 3000 | ||||
| Net weight [kg]④ | 147 | 199 | 147 / 166 | 199 / 166 | 147 / 114 |

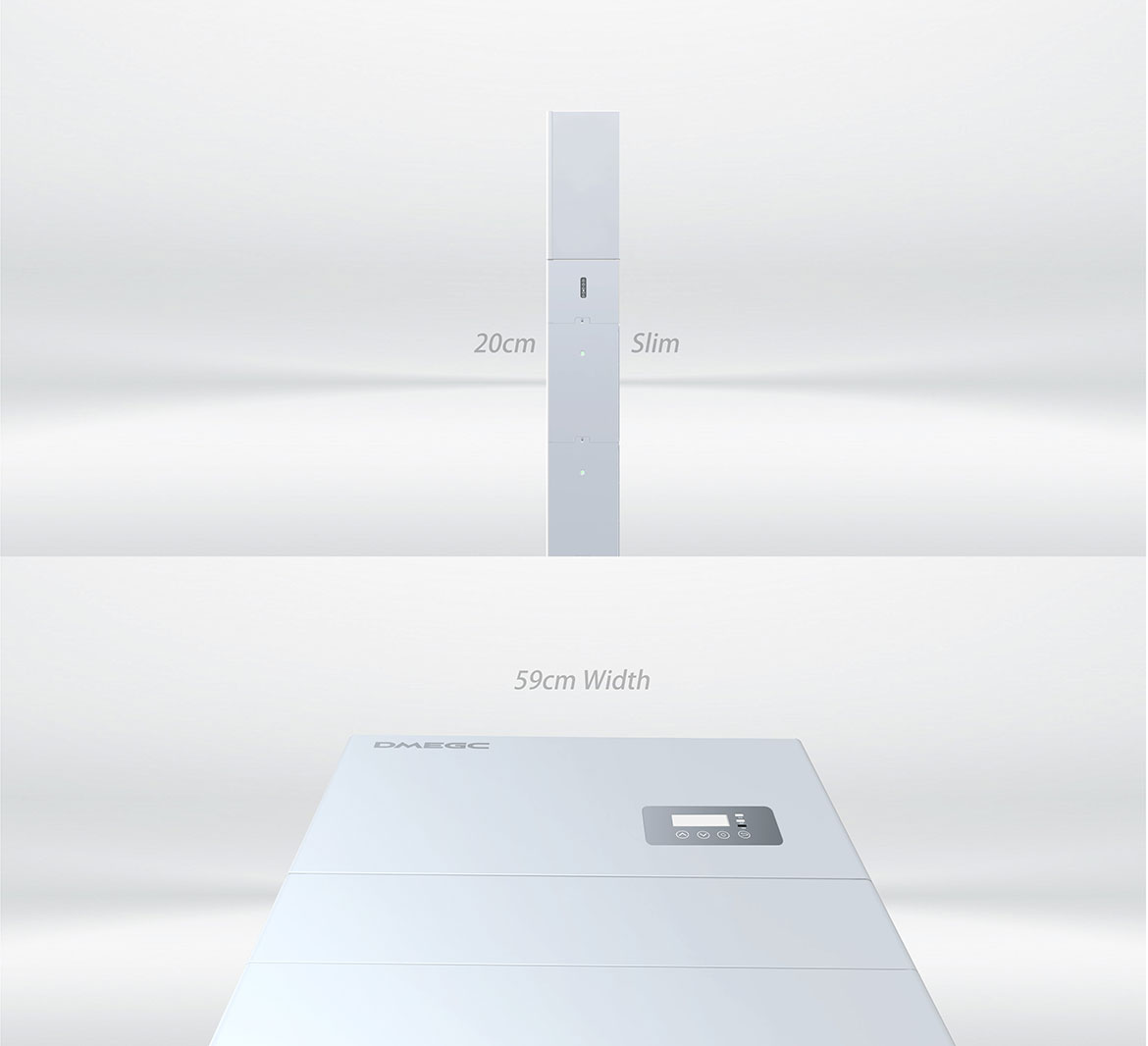

| Dimension (W x H x D) [mm] | 590 × 1341× 204 | 590 x 1674 x 204 |
590 × 1341 × 204/ 590 × 845 × 204 |
590× 1341 × 204/ 590 × 1179 × 204 |
590 × 1674 × 204/ 590 × 1179 × 204 |
| Display | LCD | ||||
| Cooling concept | Natural cooling | ||||
| Topology | Transformerless | ||||
| Communication | RS485, CAN, LAN, Wi-Fi | ||||

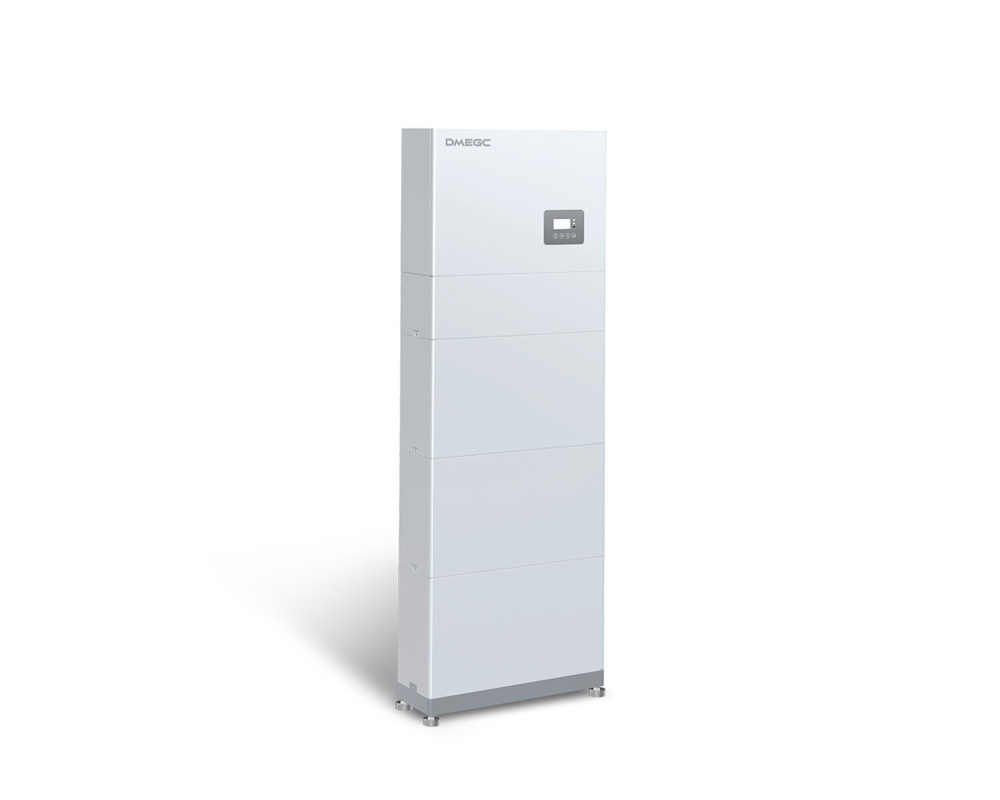

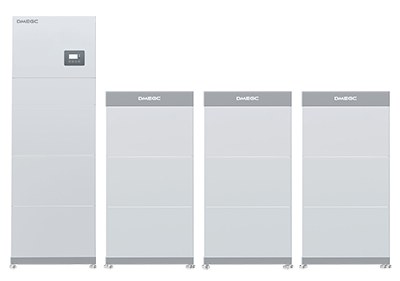

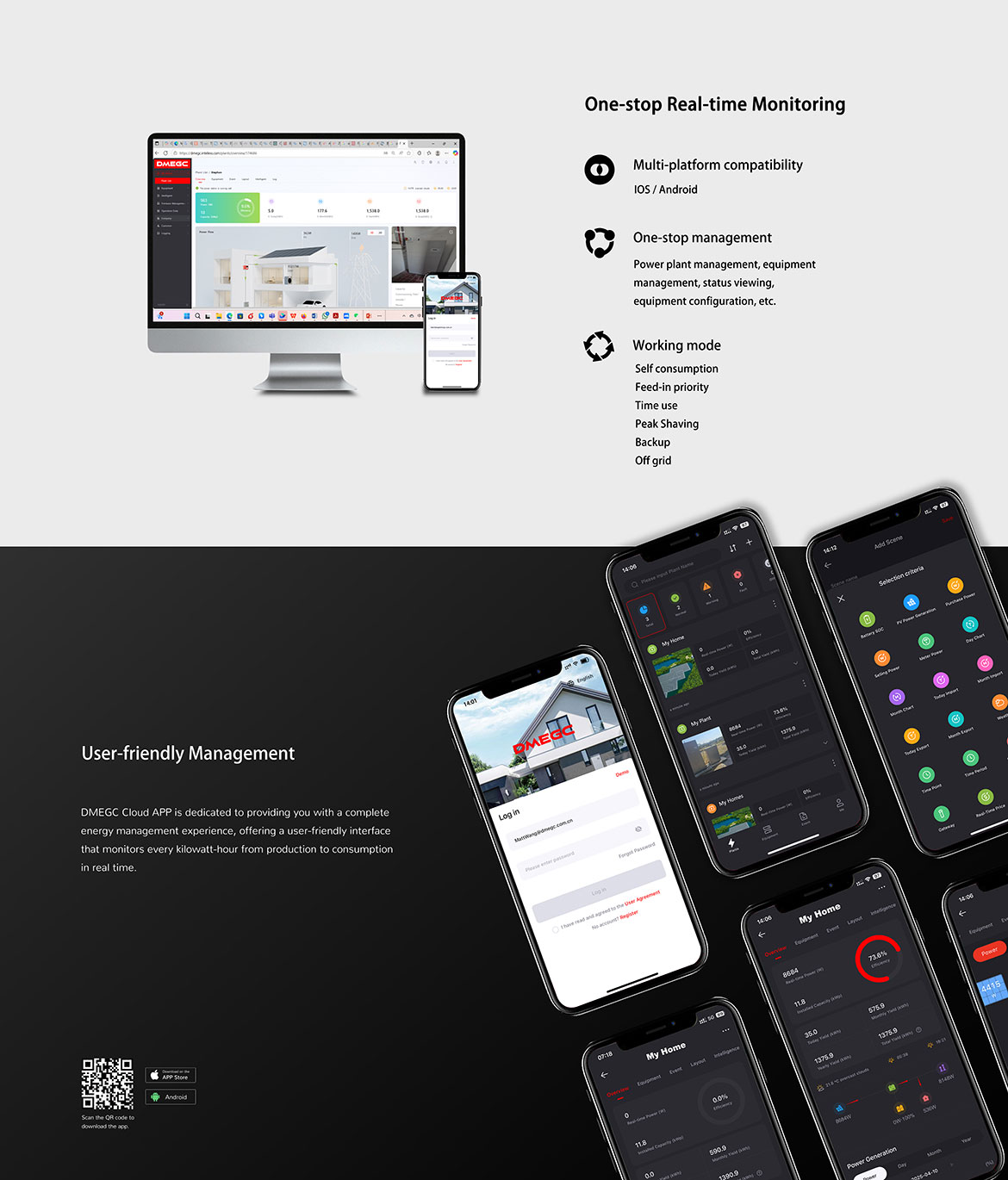

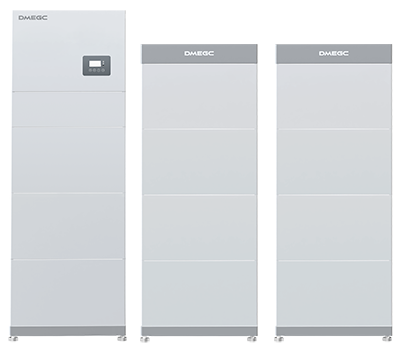

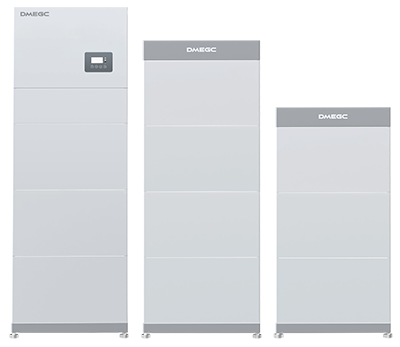

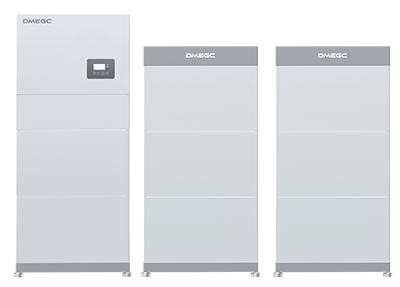

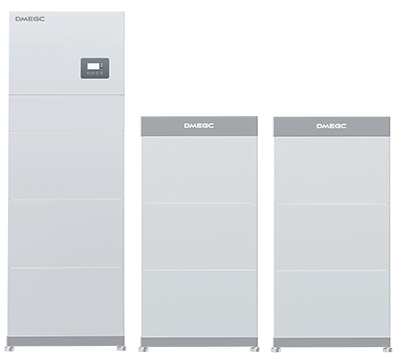

| SYSTEM SCHEMATIC |
|
|
|
|
|
|
| Rated output power [kW] | 4 / 5 / 6 / 8 / 10 / 12 /15 | |||||
| Number of batteries | 7 | 8 | 9 | 10 | 11 | 12 |
| Nominal capacity [kWh]① | 35.84 | 40.96 | 46.08 | 51.2 | 56.32 | 61.44 |
| Usable energy [kWh]② | 34.05 | 38.91 | 43.78 | 48.64 | 53.5 | 58.37 |
| Max. charge / discharge power [kW]③ | 15 | 15 | 15 | 15 | 15 | 15 |
| Battery voltage range [V] | 319-403 | 365-461 | 410-518 | 456-576 | 502-634 | 547-691 |
| Degree of protection | IP65 | |||||
| Operating temperature range [°C] | -20 to 57 | |||||
| Allowable relative humidity range [%] | 5-95 (No condensation) | |||||
| Max. operating altitude [m] | 3000 | |||||
| Net weight [kg]④ | 199 / 218 | 147 / 166 / 166 | 199 / 166 / 166 | 199 / 218 / 166 | 199 / 218 / 218 | 199 / 166 / 166 / 166 |
| Dimension (W x H x D) [mm] |
590 × 1674 × 204/ 590 × 1513 × 204 |
590 × 1341 × 204/ 590 × 1179 × 204/ 590 × 1179 × 204 |
590 × 1674 × 204/ 590 × 1179 × 204/ 590 × 1179 × 204 |
590 × 1674 × 204/ 590 × 1513 × 204/ 590 × 1179 × 204 |
590 × 1674 × 204/ 590 × 1513 × 204/ 590 × 1513 × 204 |
590 × 1674 × 204/ 590 × 1179 × 204/ 590 × 1179 × 204/ 590 × 1179 × 204 |
| Display | LCD | |||||
| Cooling concept | Natural cooling | |||||
| Topology | Transformerless | |||||
| Communication | RS485, CAN, LAN, Wi-Fi | |||||
① Test conditions: 25°C, 100% depth of discharge (DoD), 0.2C charge & discharge.
② System usable energy may vary with inverter different setting.
③ The max. charge/discharge power must not exceed the rated output power (the table takes the maximum power inverter as an example).
④ Different inverter models have different weights. The heaviest one is taken as an example.
| INVERTER MODEL | DM-INV-TPH4K | DM-INV-TPH5K | DM-INV-TPH6K | DM-INV-TPH8K | DM-INV-TPH10K | DM-INV-TPH12K | DM-INV-TPH15K |
|---|---|---|---|---|---|---|---|
| PV INPUT | |||||||
| Max. recommended PV power [Wp] | 8000 | 10000 | 12000 | 16000 | 20000 | 22500 | 22500 |
| Max. PV Input voltage [V] | 1100 | ||||||
| Nominal operating voltage [V] | 720 | ||||||
| Max. input current per MPPT [A] | 16 / 16 / 16 | ||||||
| Max. short circuit current per MPPT [A] | 24 / 24 / 24 | ||||||
| MPPT voltage range① [V] | 140 ~ 950 | ||||||
| Start-up voltage [V] | 85 | ||||||
| MPPT number | 3 | ||||||
| Max. input strings per MPPT | 1 | ||||||
| INPUT AC | |||||||
| Nominal AC power [VA] | 8000 | 10000 | 12000 | 20000 | 16000 | 20000 | 20000 |
| Max. AC current [A] | 11.6 | 43.5 | 17.4 | 29.0 | 23.2 | 29.0 | 29.0 |
| Rated grid Frequency [Hz] | 50 / 60 | ||||||
| Power factor | >0.99 (Adjustable from 0.8 leading to 0.8 lagging) | ||||||
| OUTPUT AC(ON-GRID) | |||||||
| Nominal AC power [VA] | 4000 | 5000 | 6000 | 8000 | 10000 (AS4777 9999) | 12000 | 15000 |
| Max. apparent AC power [VA] | 4400 | 5500 | 6600 | 8800 | 10000 (AS4777 9999) | 13200 | 15750 |
| Rated grid voltage (AC voltage range) [V] | 3L/N/PE, 380 / 400 | ||||||
| Rated grid Frequency [Hz] | 50 / 60 | ||||||
| Grid voltage range [V] | 150~288 | ||||||
| Rated AC Output Current [A] | 5.8 | 7.2 | 8.7 | 11.6 | 14.5 | 17.4 | 21.7 |
| Displacement power factor | >0.99 (Adjustable from 0.8 leading to 0.8 lagging) | ||||||
| Total harmonic distortion (THDi, rated power) [%] | < 3 | ||||||
| OUTPUT AC(BACK-UP) | |||||||
| Rated output power [VA] | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 |
| Max. Apparent Output Power[VA] | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 |
| Rated output voltage [V], Frequency [Hz] | 3L/N/PE, 380 / 400, 50/60 | ||||||
| Rated output current [A] | 5.8 | 7.2 | 8.7 | 11.6 | 14.5 | 17.4 | 21.7 |
| Switchover time [ms] | <10 | ||||||
| Total harmonic distortion (THDv, linear Load) [%]/td> | < 3 | ||||||
| BATTERY | |||||||
| Battery voltage range [V] | 91.2 ~ 691.2 | ||||||
| Communication interfaces | CAN / RS485 | ||||||
| BMS module | H02-MASTER | ||||||
| Battery module | H02-SLAVE | ||||||
| Composition | H02-MASTER + H02-SLAVE * n + Bases + Series Box（Required for ≥2 towers） | ||||||
| Battery type | Li-ion (LFP) | ||||||
| Nominal capacity [kWh] / Nominal capacity [Ah]② | 5.12 / 100 | ||||||
| Usable energy [kWh]③ | 4.86 | ||||||
| Standard power [kW] | 2.56 | ||||||
| Max power [kW] | 2.56 | ||||||
| Recommend charge/discharge current [A] | 50 / 50 | ||||||
| Max. charge / discharge current [A]④ | 50 / 50 | ||||||
| Cycle life [Cycles] | 6000 | ||||||
| Warranty [Years] | 10 | ||||||
| Safety | IEC62619/IEC63056/IEC62477-1/62040-1/IEC60730 | ||||||
| Transportation | UN38.3 | ||||||
| H02-MASTER dimensions(W x H x D) [mm] / Weight [kg] | 590 × 181 × 204 / 9.3 | ||||||
| H02-SLAVE dimensions(W x H x D) [mm] / Weight [kg] | 590 × 333 × 204 / 52 | ||||||
| Base dimensions(W x H x D) [mm] / Weight [kg] | 590 × 78 × 204 / 5 | ||||||
| Series box dimensions(W x H x D) [mm] / Weight [kg] | 590 × 100 × 204 / 5 | ||||||
| EFFICIENCY | |||||||
| Max. efficiency [%] / Euro-efficiency [%] | 97.8 / 97.3 | 97.8 / 97.3 | 97.8 / 97.3 | 98 / 97.5 | 98 / 97.5 | 98 / 97.5 | 98 / 97.5 |
| Rated battery charge [%] / Discharge efficiency [%] | 98.5 / 97 | ||||||
| GENERAL DATA (INVERTER) | |||||||
| Dimensions (W x H x D) [mm] | 590 × 416 × 206 | ||||||
| Weight [kg] | 29kg | ||||||
| Operating temperature range [°C] | -25 ~ +60 (derating above 45°C) | ||||||
| Ingress protection | IP65 | ||||||
| Relative humidity [%] | 5 to 95 (No condensation) | ||||||
| GENERAL DATA (INVERTER) | |||||||
| Storage temperature [°C] | -40 ~ +65 | ||||||
| Noise emission (typical) [dB(A)] | < 30 (45 for 12/15kW) | ||||||
| PROTECTION | |||||||
| Anti-Islanding Protection | Integrated | ||||||
| Insulation Resistor Detection | Integrated | ||||||
| Residual Current Monitoring Unit | Integrated | ||||||
| Output Over Current Protection | Integrated | ||||||
| Output Short Protection | Integrated | ||||||
| Output Overvoltage Protection | Integrated | ||||||
| DC Reverse Polarity Protection | Integrated | ||||||
| PV Overvoltage Protection | Integrated | ||||||
| PV Switch | Integrated | ||||||
| Battery Breaker | Integrated | ||||||
| STANDARD | |||||||
| Safety | IEC62109-1 / IEC62109-2 | ||||||
| EMC | EN 61000-6-1 / EN 61000-6-2 / EN 61000-6-3 | ||||||
| Grid Regulation | VDE-AR-N 4105, G98/G99, C10/11, NTS 631, RD1699, CEI 0-21, VDE 0126, NRS 097-2-1, MEA, PEA, AS/NZS 4777.2, EN 50549-1 | ||||||
| FEATURES | |||||||
| PV Connection | Vaconn D4 connectors | ||||||
| Grid Connection | Plug in connector | ||||||
| Back-up Connection | Plug in connector | ||||||
| BAT Connection | Amphenol H4 connectors | ||||||
| Warranty[Years] | 10 | ||||||
① Any DC input voltage beyond the MPPT voltage range may result in inverter improper operating.
② Test conditions: 25°C, 100% depth of discharge (DoD), 0.2C charge & discharge.
③ System usable energy may vary with inverter different setting.
④ Discharge: In case of battery cell's temperature range of -20°C~10°C and 45°C~53 °C, the discharge current will be reduced; Charge: In case of battery cell's temperature
range of 0°C~25°C and 45°C~53°C, the charge current will be reduced. Product charge or discharge power depends on the actual temperature of battery pack.
