L02-48100

L02-48100 is the latest version of BESS (Battery energy storage system), inherit with our design concept, combined with easy installation, simple connectors and high security, the furniture type of equipment is your ideal place to hold your valuable force – the electricity.
Back to list > >

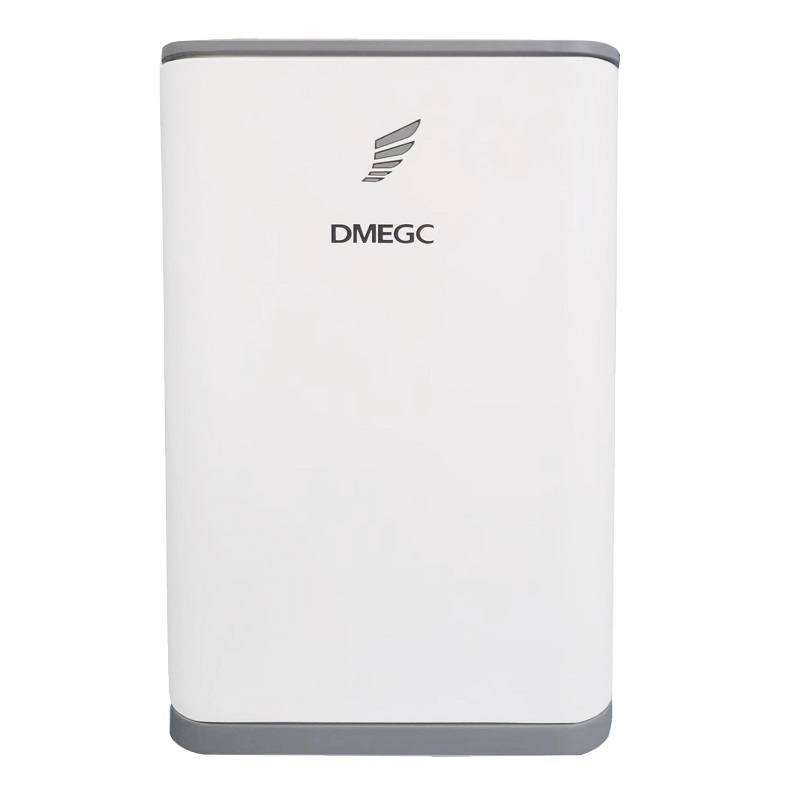

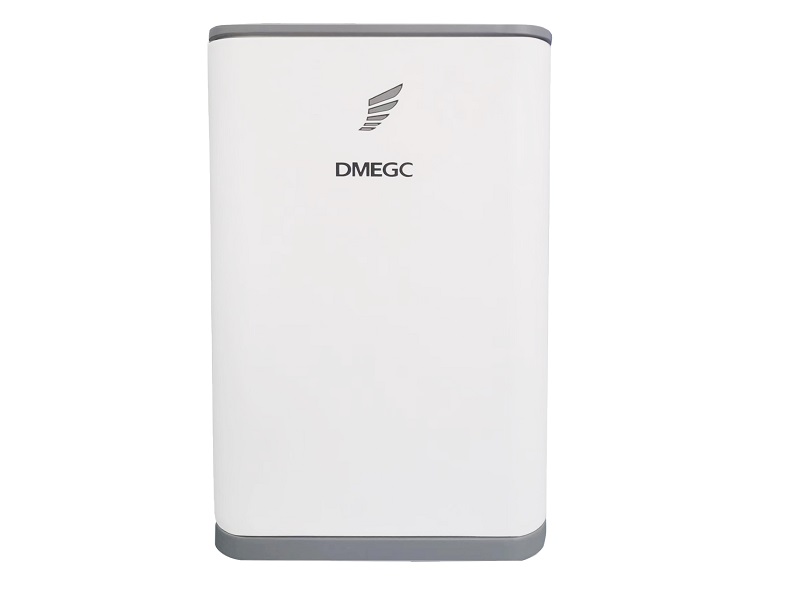

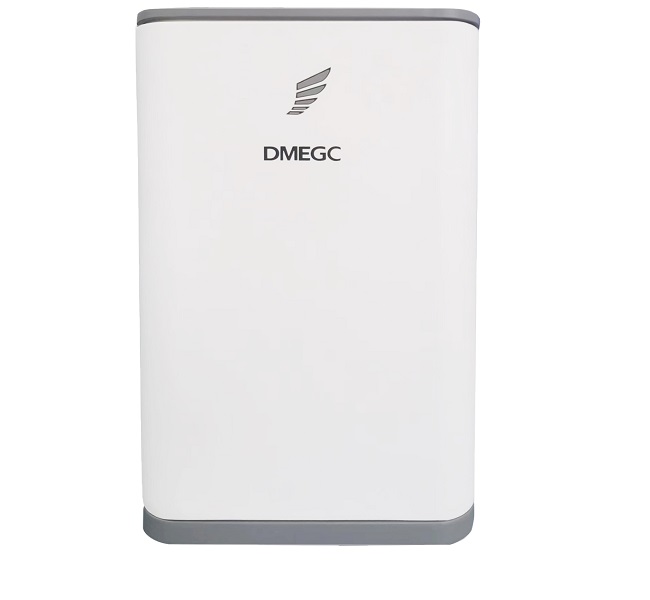

DMEGC L02-48100
BESS solution


IP65 protection level

Fivefold protection

Easy installation

Floor or wall mounting

Less self consumption

Use DIP to select inverter



Total Energy: 5.12kWh
Nominal voltage: 51.2V
Nominal capacity: 100Ah
Dimension(W*D*H): 370*225*600
Weight: 52kg
Communication Protocol: RS485, CAN
Protection Class: IP 65
Operating Temperature: charge: 0℃~55℃ / Discharge: -20℃~55℃
Cycle Life: ＞6000, 25℃
Authentication level：TUV/CE/IEC/UN38.3

Data Sheet of L02-48100

Download

L02 Quick Installation Guide

Download
